Message actions

A message action turns a message into something in a Frappe app. For example, it can create a document from a message, with the message text already filled in. An admin sets up the actions. Everyone can then use them on any message.

Use an action on a message

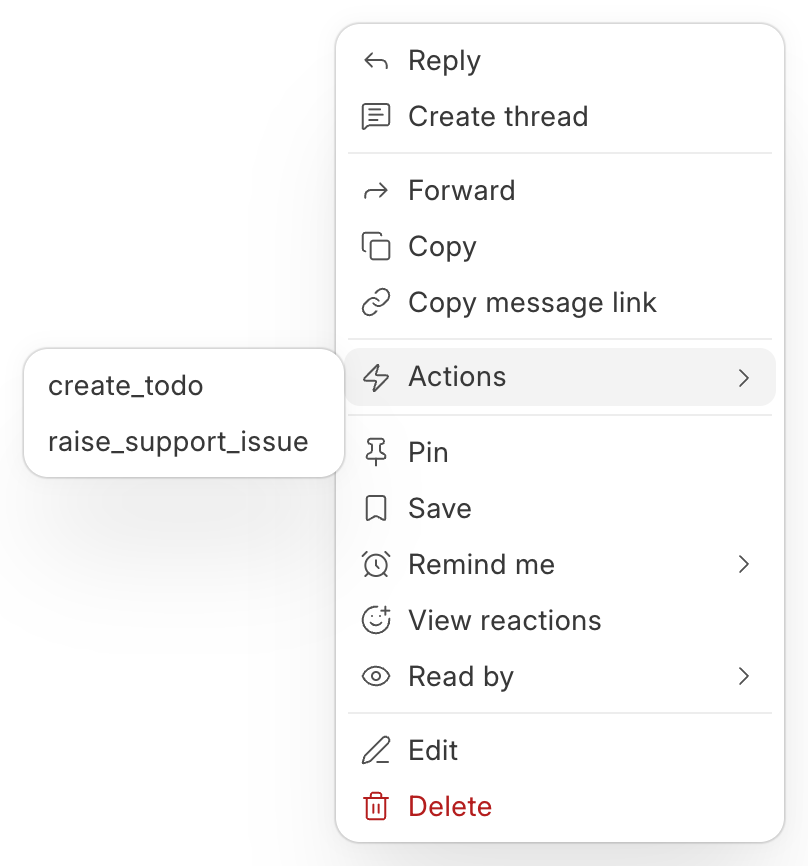

1. Point to a message and click ⋯.
2. Point to Actions.
3. Click the action.

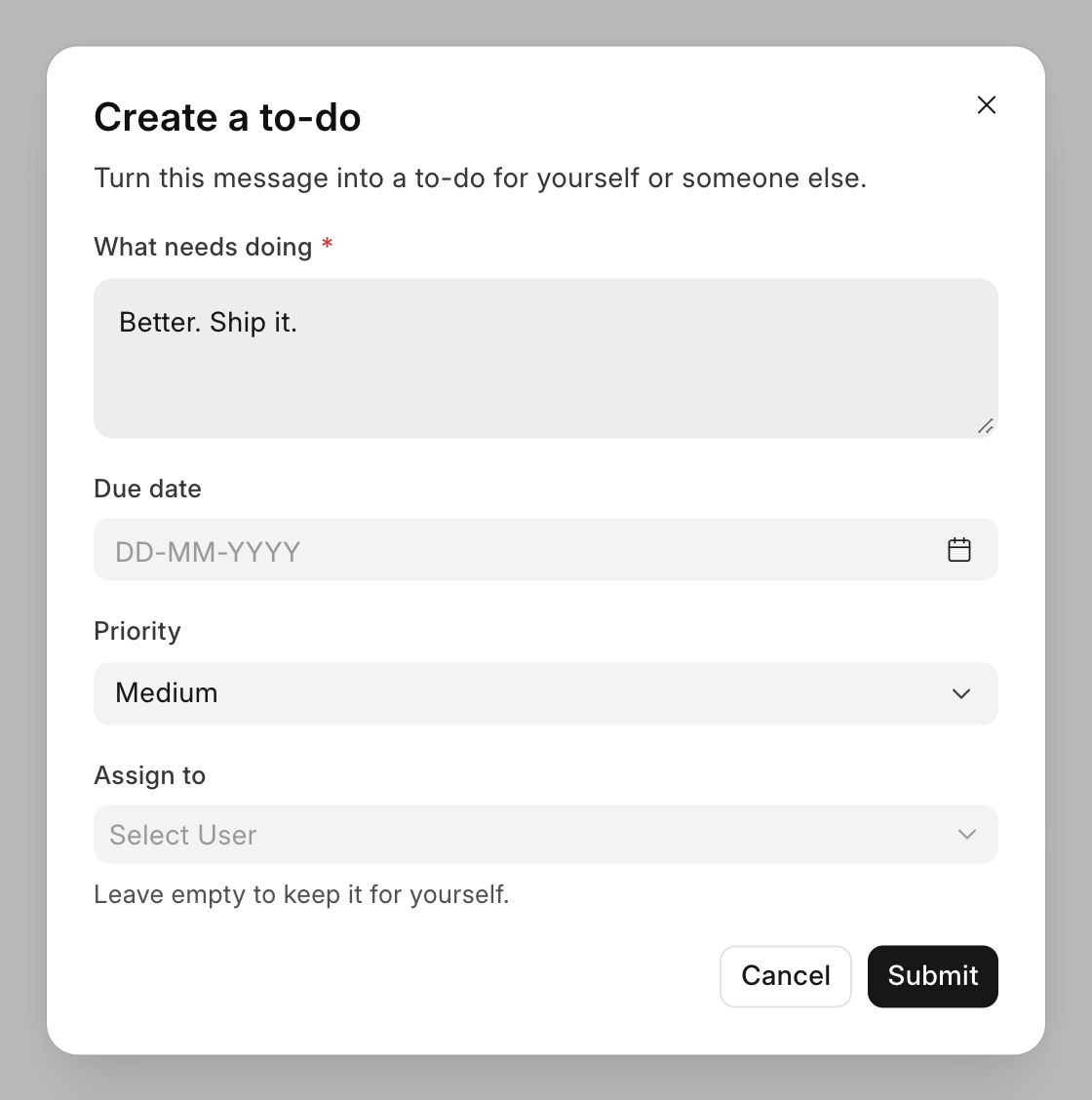

4. Check the values in the dialog. Some are filled in from the message.
5. Click Submit.

Raven shows a message when the action is done. If the action created a document, click View in that message to open the document. The message also gets the document card, if it did not have one already.

Actions only shows on the menu when your site has at least one enabled action.

An action runs with the permissions of the person who uses it. If they can't create the document, the action fails and Raven shows the error. The dialog stays open, so they can fix a value and try again.

Set up an action

1. Open Settings and click Message Actions.
2. Click Create.

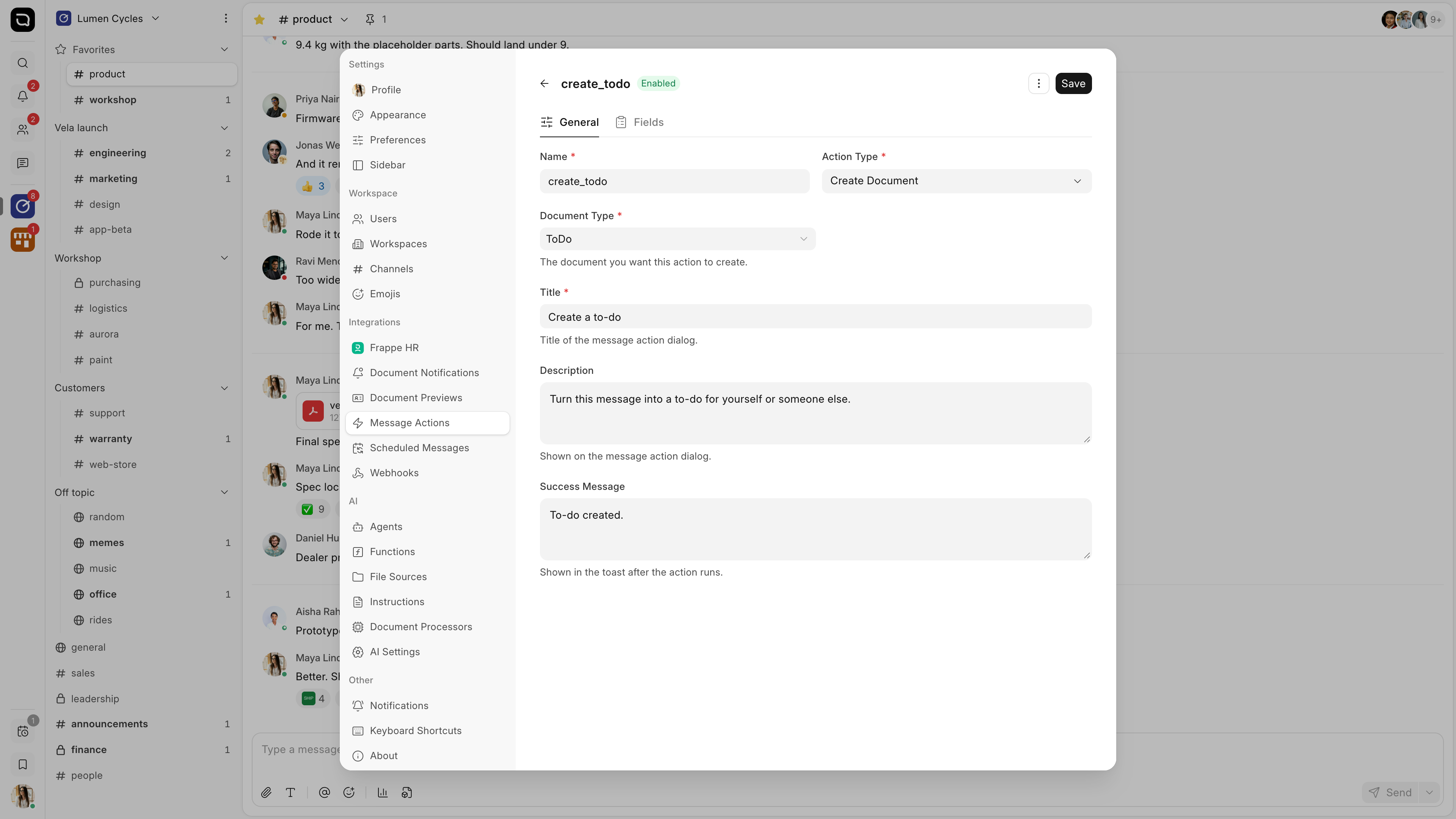

3. Fill in the General tab.

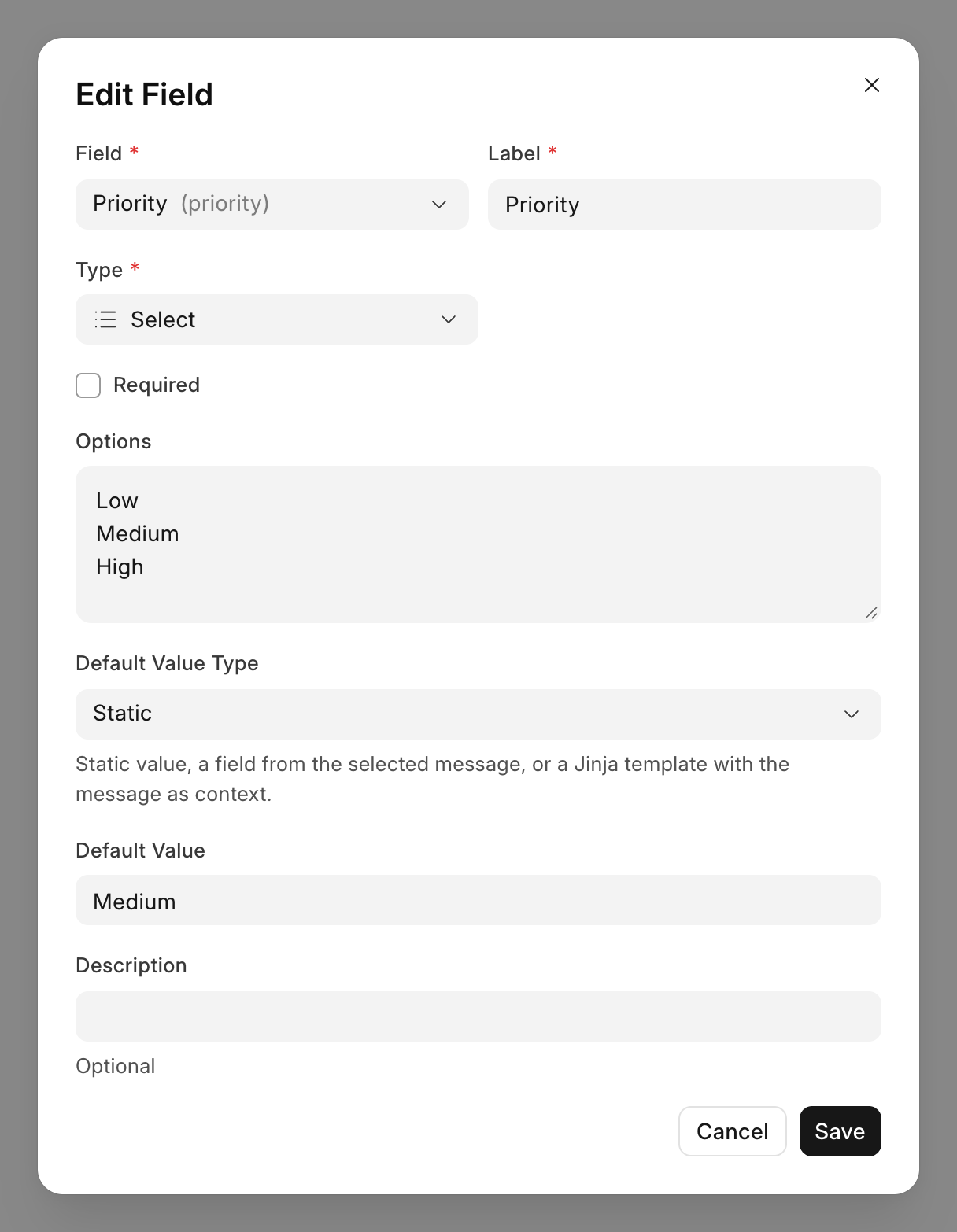

4. Click the Fields tab and add the fields the dialog should show.
5. Click Create.

General

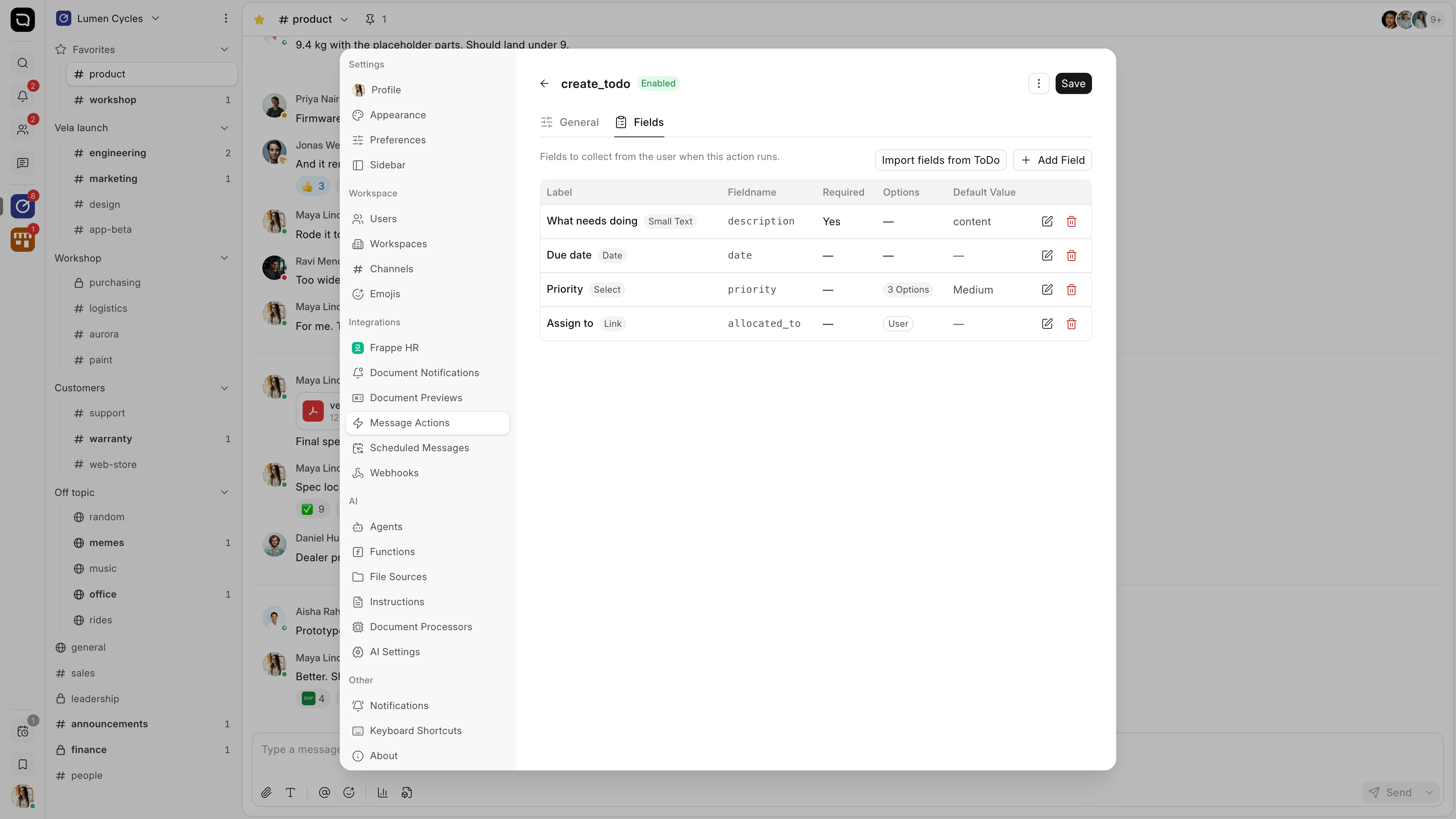

Fields

Each row is a field in the dialog that people see when they use the action. The field's name is the key its value is sent under.

• Click Add Field to add one field.
• For Create Document, click Import fields from and the document type to add all its mandatory fields at once.
• Click the pencil on a row to change it, or the bin to remove it.

Number fields are sent as numbers. Checkbox fields are sent as 1 or 0. Datetime fields are sent as text, such as 2026-10-19 14:30:00.

Create Document

Raven creates a new document of the type in Document Type, filled in with the values from the dialog.

• Each field in the Fields tab fills the document field of the same name.
• Values with no matching field on the action are dropped.
• The document must pass its own checks. Every mandatory field needs a value, so use Import fields from to add them.
• After the document is created, Raven attaches it to the message, unless the message already has a document.
• The success message has a View button that opens the new document.

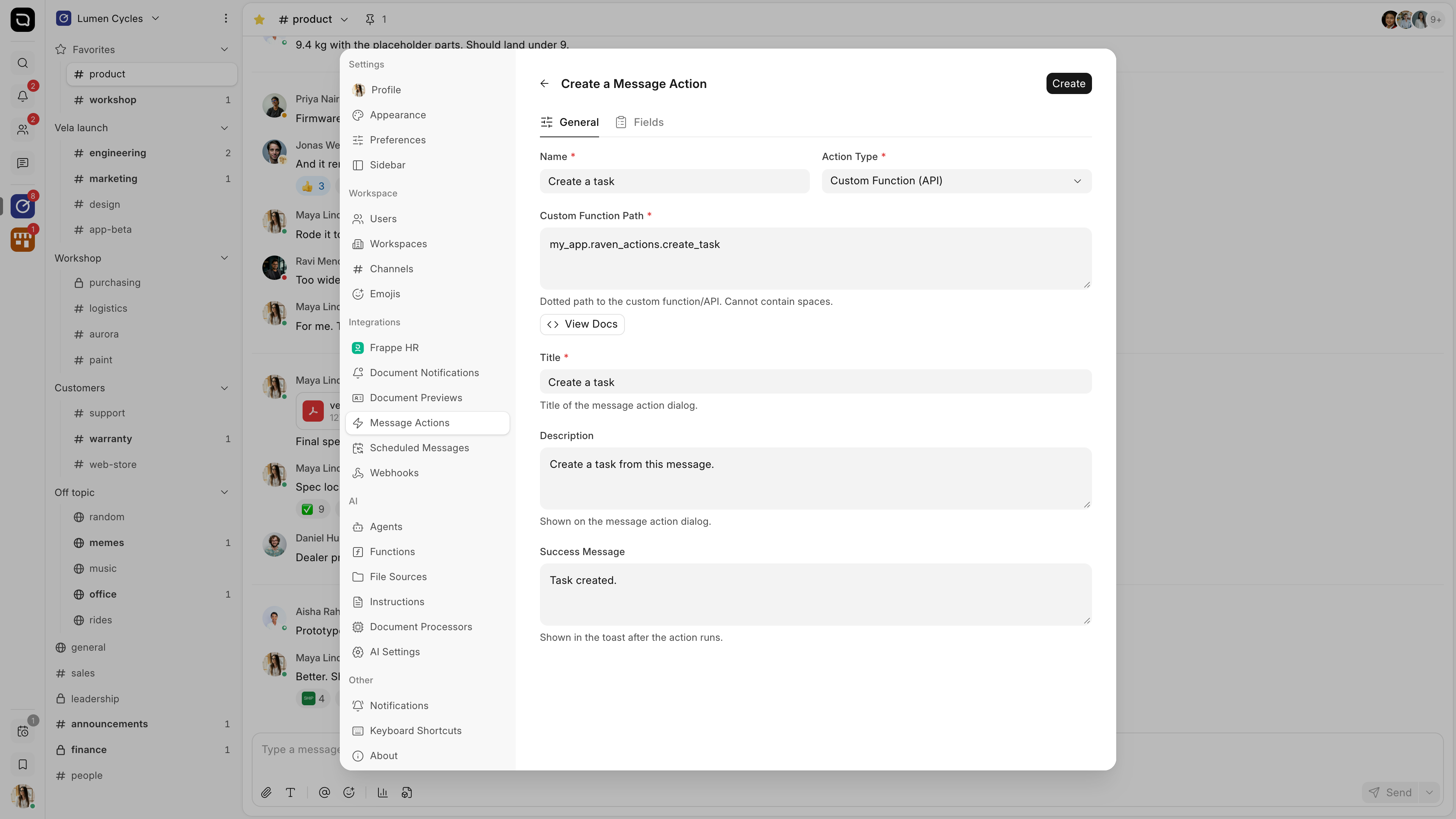

Custom Function (API)

Raven calls a Python function in an app on your site. Use this when the action needs more than one document, or logic of its own.

In Custom Function Path, enter the dotted path to the function, with no spaces. For a function create_task in the file my_app/raven_actions.py, the path is my_app.raven_actions.create_task.

Raven calls the function with one keyword argument for each field of the action. Each argument has the field name. Nothing else is passed, not even the message. To use a value from the message, add a field with Message Field as its Default Value Type.

A field that is left empty can arrive as an empty string, or not arrive at all. Give every optional argument a default.

The function runs as the person who used the action. If it raises an error, Raven shows the error and the dialog stays open. If it returns a dictionary with a link, the success message has a View button that opens that link.

This example has three fields on the action:

# my_app/raven_actions.py
import frappe


def create_task(description, assigned_to=None, message_url=None):
	"""Called by a Raven message action. Each argument is a field of the action."""
	if not description:
		frappe.throw("Add a description first.")

	# ToDo is a document type that every Frappe site has.
	todo = frappe.get_doc(
		{
			"doctype": "ToDo",
			"description": f"{description}<br><br>From Raven: {message_url or ''}",
			"allocated_to": assigned_to or frappe.session.user,
		}
	).insert()

	# Raven shows a View button that opens this link.
	return {"link": todo.get_url()}

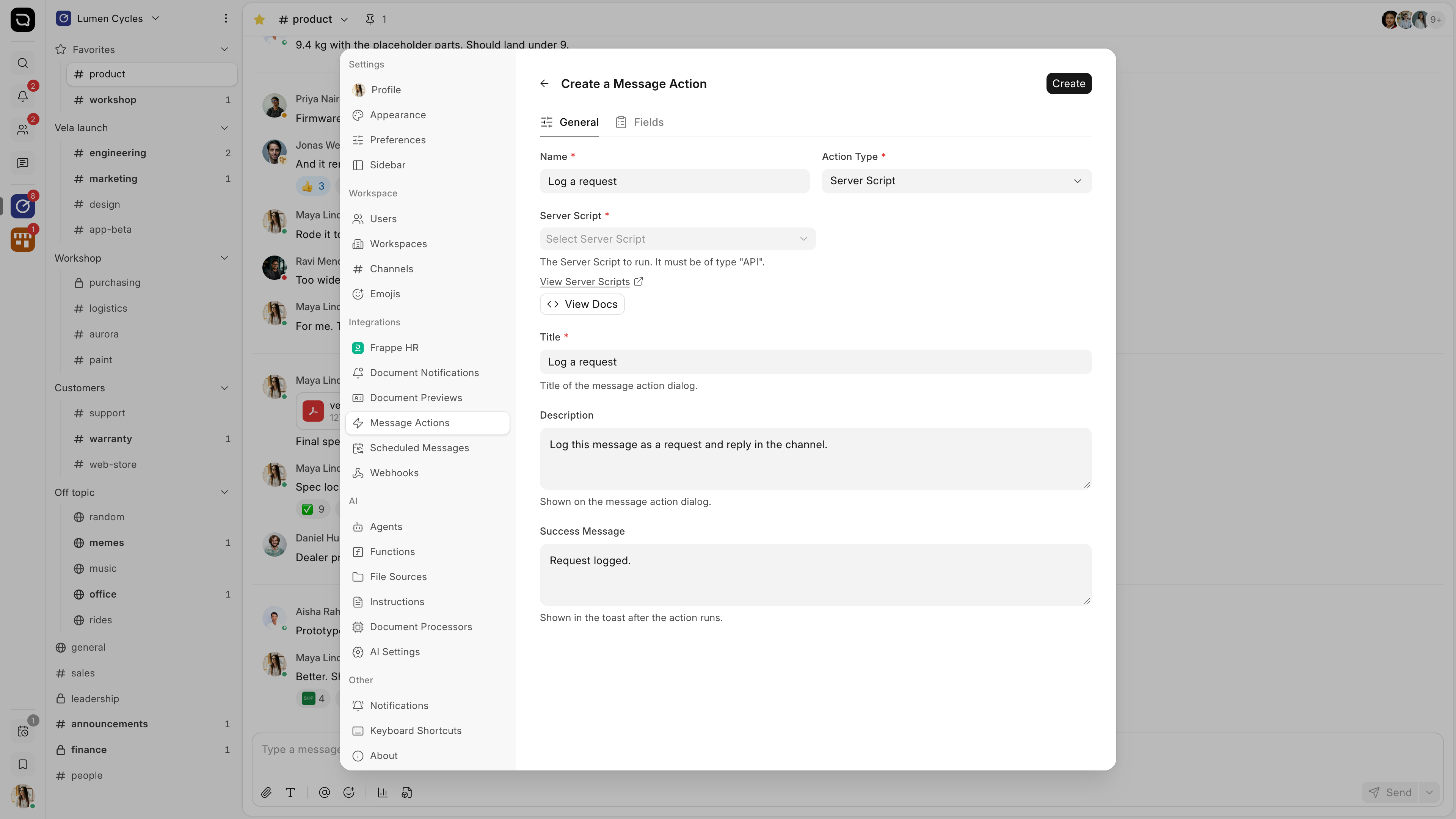

Server Script

Raven runs a Server Script with the values from the dialog. Use this to add logic without writing an app.

Before you start

Server scripts must be turned on for the whole bench. A system administrator runs this command on the server:

bench set-config -g server_script_enabled 1

It can take up to a minute to take effect.

Write the script

1. Under the Server Script field, click View Server Scripts.
2. Create a Server Script with Script Type set to API.
3. Save it, and make sure it is not disabled.
4. Back in Message Actions, pick it in the Server Script field.

What the script gets

The script reads its input from frappe.form_dict:

Read the values with frappe.form_dict.get("values"). frappe.form_dict.values does not work, because values is also a method of a Python dictionary. Read each value with .get("field_name").

frappe.session.user is the person who used the action. The script runs with their permissions.

Raven does not use anything the script returns. It shows the Success Message when the script ends without an error. Call frappe.throw("...") to stop and show an error instead.

Example: create a document and reply in the channel

This script creates a to-do from the message, then posts a reply in the channel as an agent. Add one field to the action: details, type Small Text, with Message Field and Content (plain text) as its default.

# Script Type: API
message_id = frappe.form_dict.get("message_id")
values = frappe.form_dict.get("values") or {}

message = frappe.get_doc("Raven Message", message_id)

# ToDo is a document type that every Frappe site has.
todo = frappe.get_doc({
    "doctype": "ToDo",
    "description": values.get("details") or message.content,
}).insert()

# Agents are stored as Raven Bot records. Use the name of one of your agents.
agent = frappe.get_doc("Raven Bot", "Requests")
agent.send_message(
    channel_id=message.channel_id,
    text="Logged as " + todo.name + " by " + frappe.session.user + ".",
)

See Agents to create an agent.

A full example

This example creates a document from a message, with the message text filled in. It uses Create Document, so no code is needed.

1. Open Settings and click Message Actions, then click Create.
2. In Name, enter a name, such as Create a task.
3. In Action Type, leave Create Document.
4. In Document Type, pick the type of document to create.
5. In Description, enter Create a task from this message.
6. In Success Message, enter Task created.
7. Click the Fields tab.
8. Click Import fields from and the document type. The mandatory fields are added.
9. Click the pencil on the field that should hold the message text.
10. In Default Value Type, pick Message Field. In Default Value, pick Content (plain text).
11. Click Save, then click Create.

Now anyone can point to a message, click ⋯, point to Actions and click Create a task. The dialog opens with the message text filled in.

Change, turn off or delete an action

Click an action in the list to open it. Make your changes and click Save.

To hide an action without deleting it, click ⋮ at the top right and click Disable. Click Enable to turn it back on. To remove it for good, click ⋮ and then Delete.

On the mobile app

Touch and hold a message, tap Actions, then tap the action.
