Files and links

Files go out with a message and open in Raven's viewer. The first link in a message gets a preview under it.

Attach files

  • Click Attach file under the message box and choose one or more files.
  • Drag files from your computer into the conversation.
  • Paste a copied file or image into the message box.

Click an image or a PDF in the message box to preview it, or x to remove it. The files and your text are posted together. If you send before the uploads finish, the message goes out when they are done. If an upload fails, remove that file and try again.

Image layout

One image shows on its own. Two to four images sent together show as a stack, and five or more as a carousel.

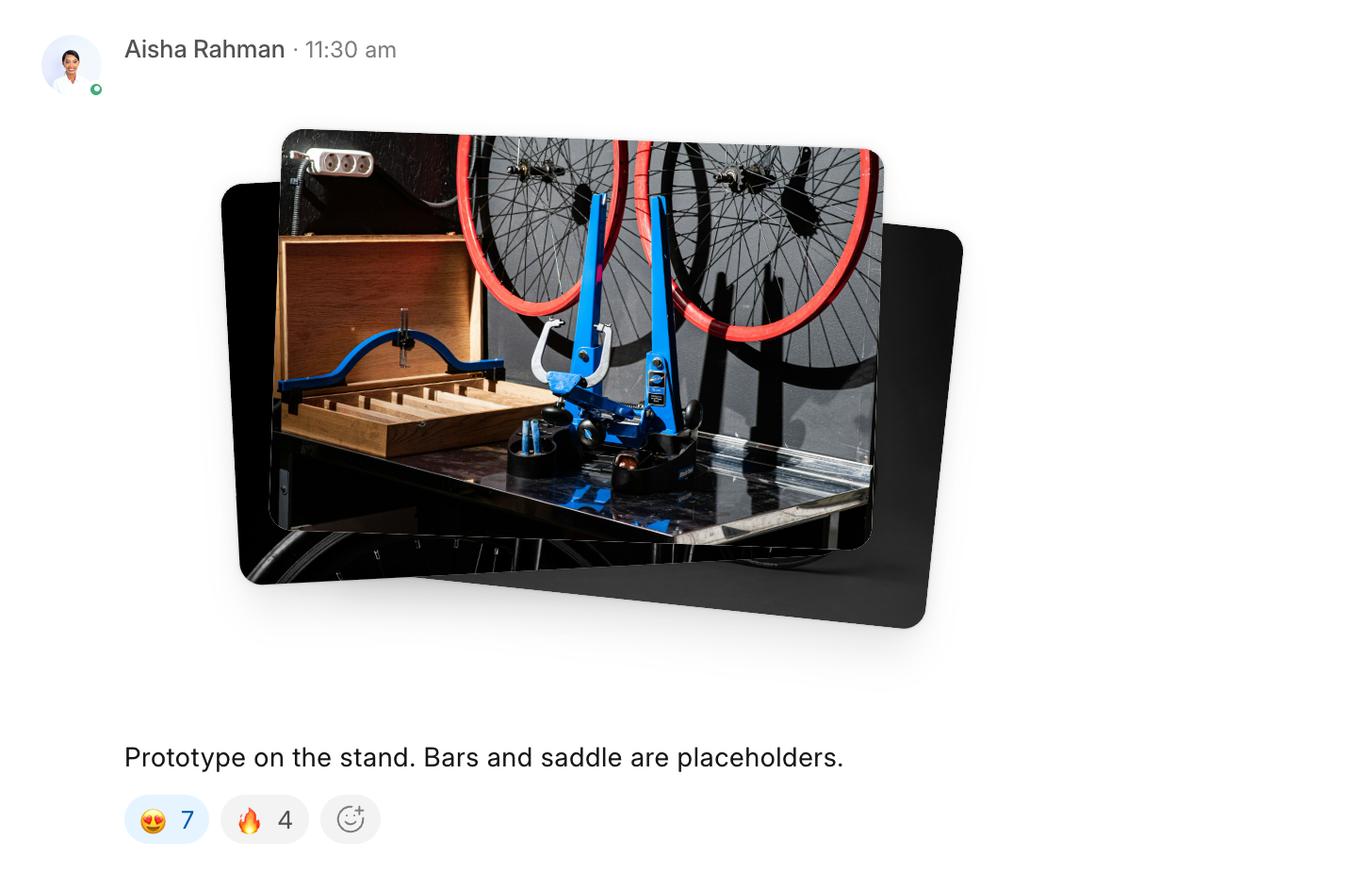

Three images sent together, shown as a stack

To show two to four images as a grid, set Image group layout to Grid in Settings > Appearance. This setting is kept on the device and browser you set it on.

Viewer

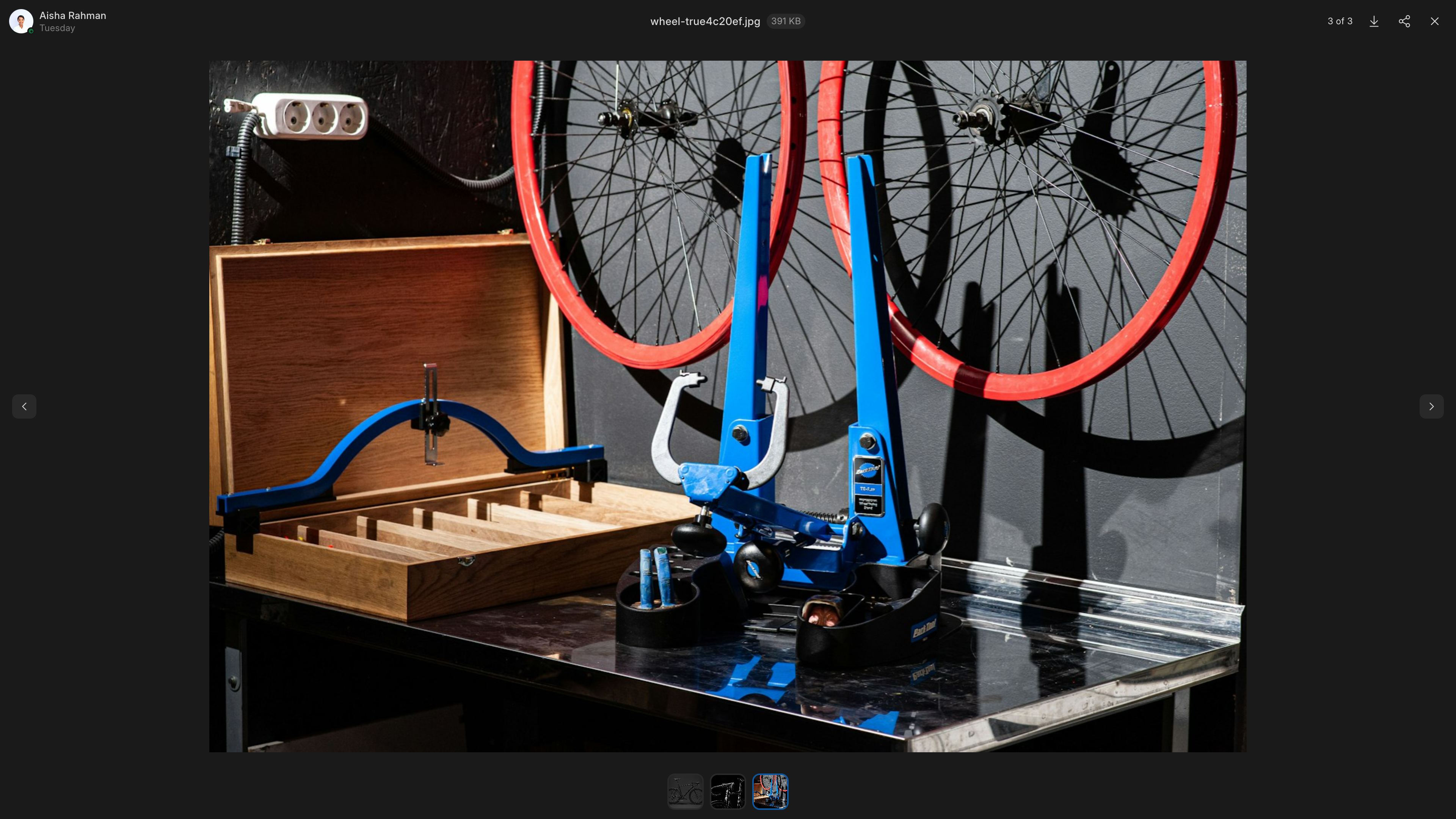

An image open in the viewer

  • When several files were sent together, page through them with the arrows, the Left and Right arrow keys, or the thumbnails.
  • Zoom an image with the zoom buttons, the mouse wheel or a pinch on a trackpad.
  • PDFs, videos and audio open inside the viewer. Files the viewer cannot show have a Download button.
  • Esc closes the viewer.

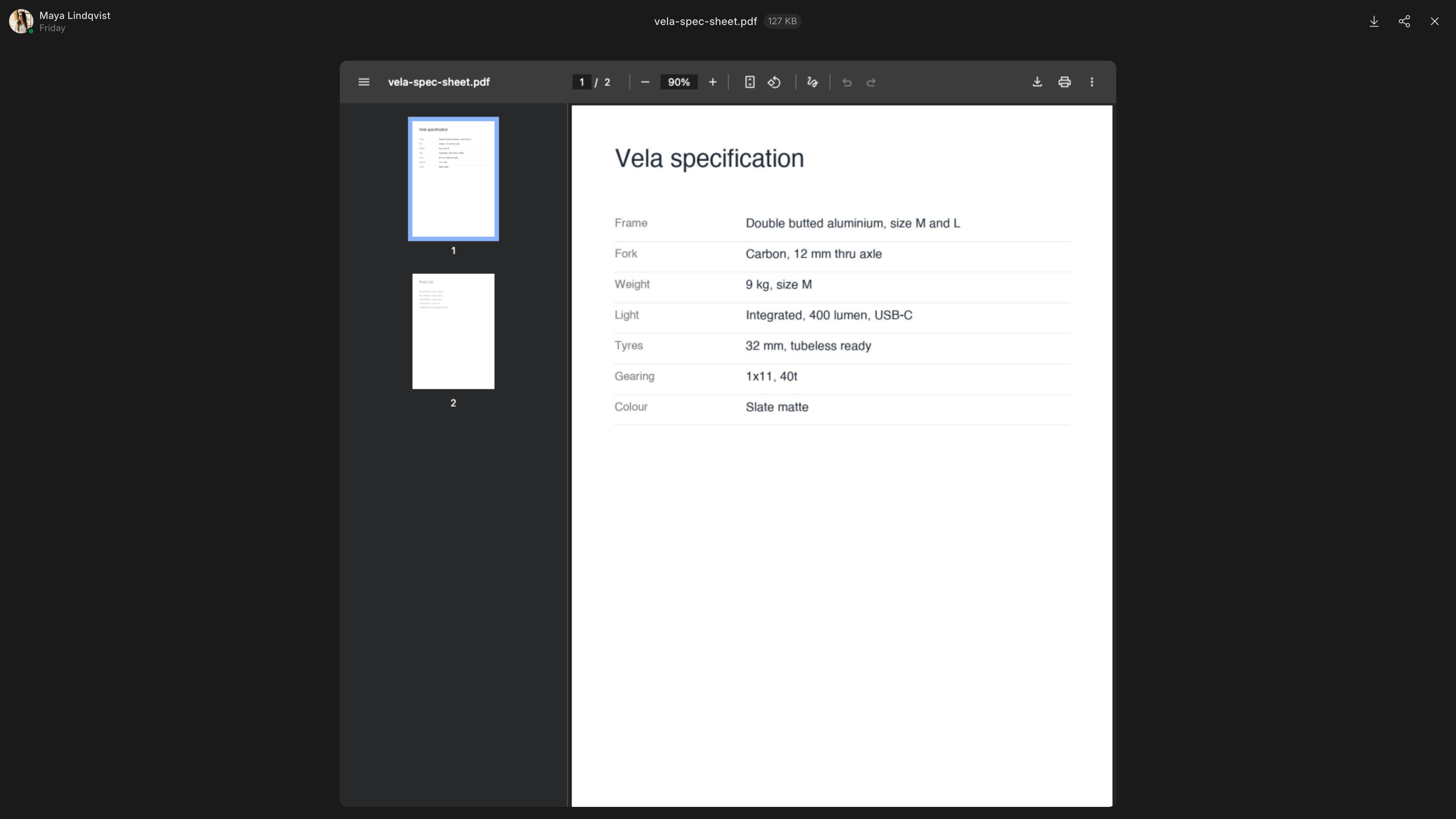

A PDF open in the viewer

File actions

The More actions menu of a message with files has Copy file link, Download all for every file that was sent together, and Attach to document, which attaches the file to a document from any Frappe app. The file stays on the message too.

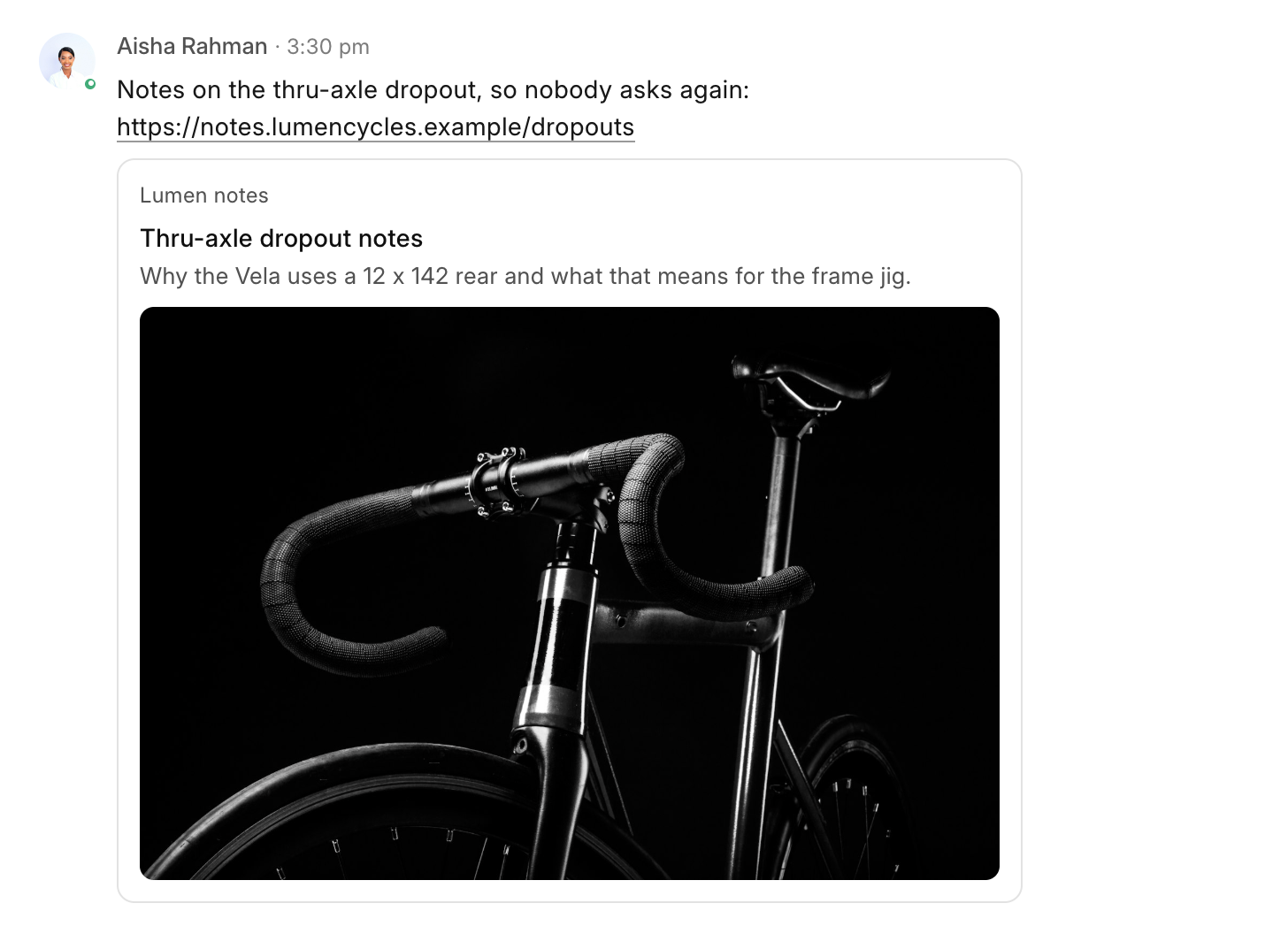

A preview card under a message with a link

Some links show the content itself:

  • Videos and music from YouTube, Vimeo, Loom, Spotify, SoundCloud, Apple Music and Apple Podcasts play in the message.
  • Reddit posts show in the message.
  • Zoom, Google Meet and Frappe Meet links show a meeting card with a Join button.
  • Links to a Raven message, thread, channel or direct message show a card that opens it.

Raven Admins and System Managers can turn off previews for some sites. See Link preview settings.

To see previews only when you point to a link, set Link previews to On hover in Settings > Appearance. Video, music and meeting previews always show.

On the mobile app

Tap + in the message box, then Camera, Photos or Files. On Android, Video records a video. Image group layout is under Profile > Preferences. Link previews always show as cards.
