Share documents in a message

A message can carry any document from any Frappe app on your site. The document shows as a card with its main fields, so people see it without leaving the chat.

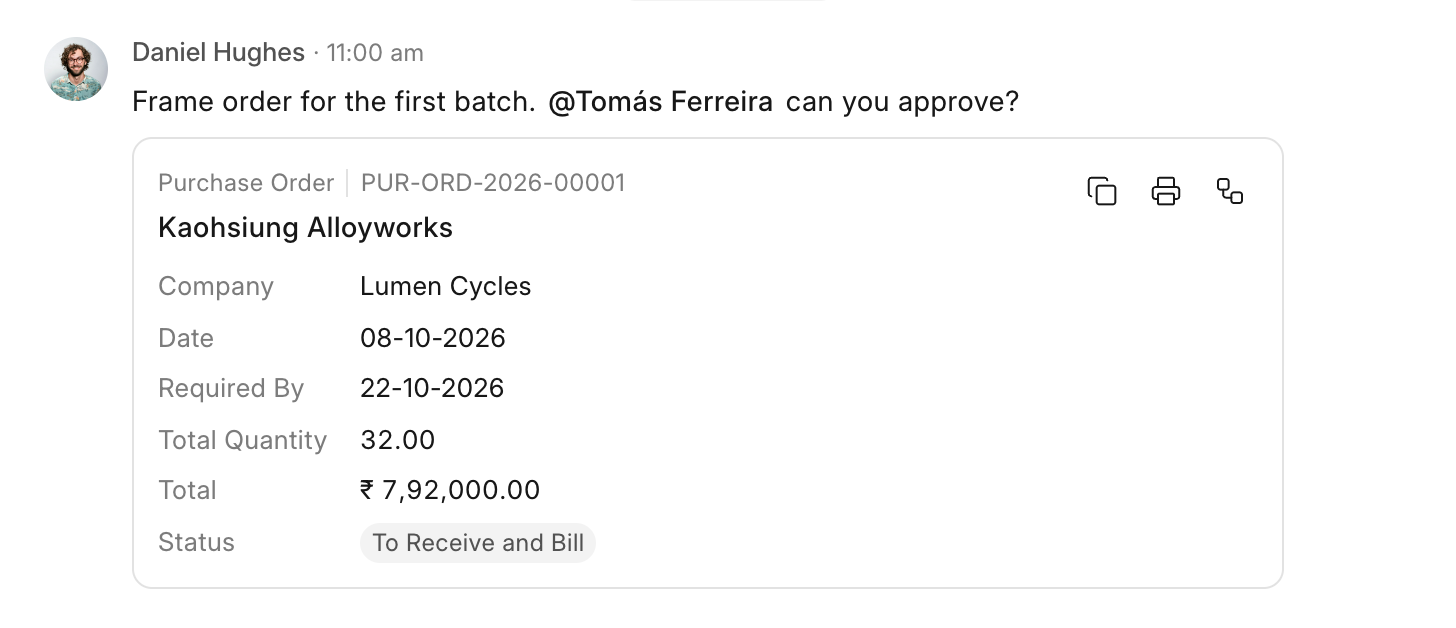

A message with a document card

Attach a document

  1. In the message box, click the document button.
  2. Pick the Document Type, then the Document.
  3. Click Attach.
  4. Press Enter. Text to go with it is optional.

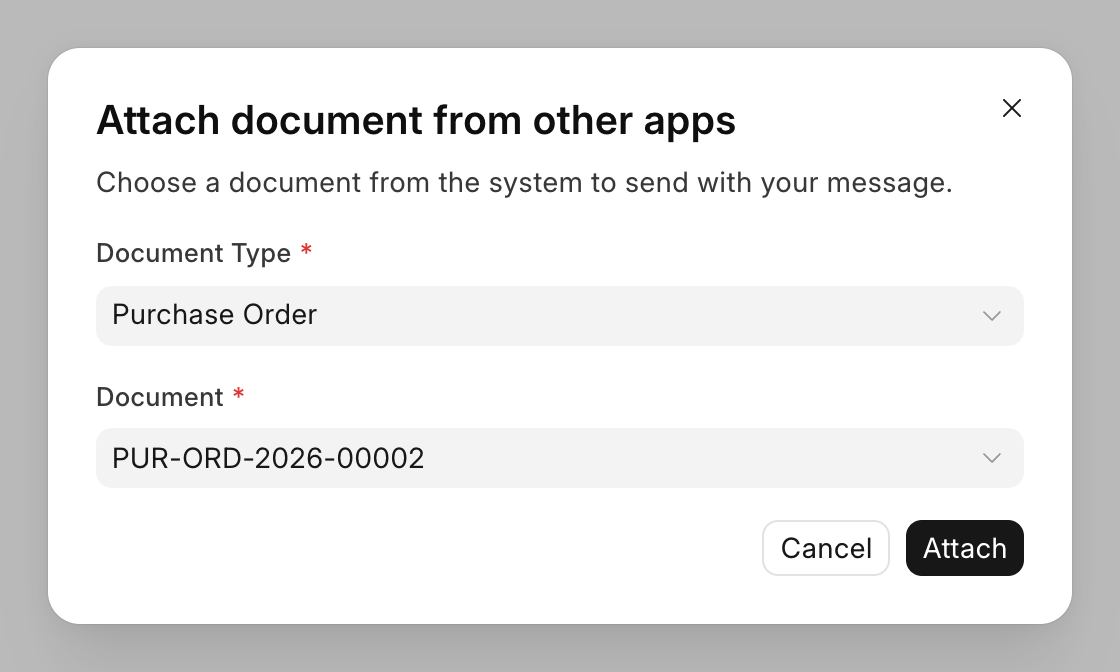

The Attach document from other apps dialog

To remove the document before you send, click the trash button on it above the message box.

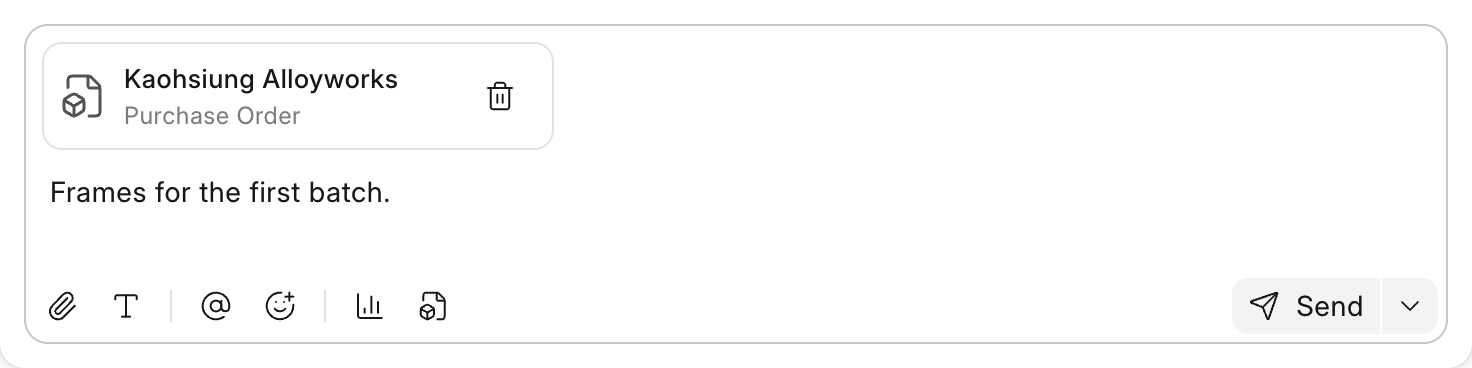

A document attached to a message before it is sent

A message holds one document. Attaching another replaces the first. Files can go in the same message.

The document card

The title opens the document in its app, and the ID next to the document type copies it. Document types with a workflow also get a button for its actions. See Approve documents from the chat.

Only people with permission to read the document see the card. Anyone else sees the document type and ID without the details.

An admin chooses which fields the card shows. See Document previews.

  1. On the card, click the print button.
  2. Pick a Print format, a Letterhead and a Language. All three are optional.
  3. Click Print or Download PDF.

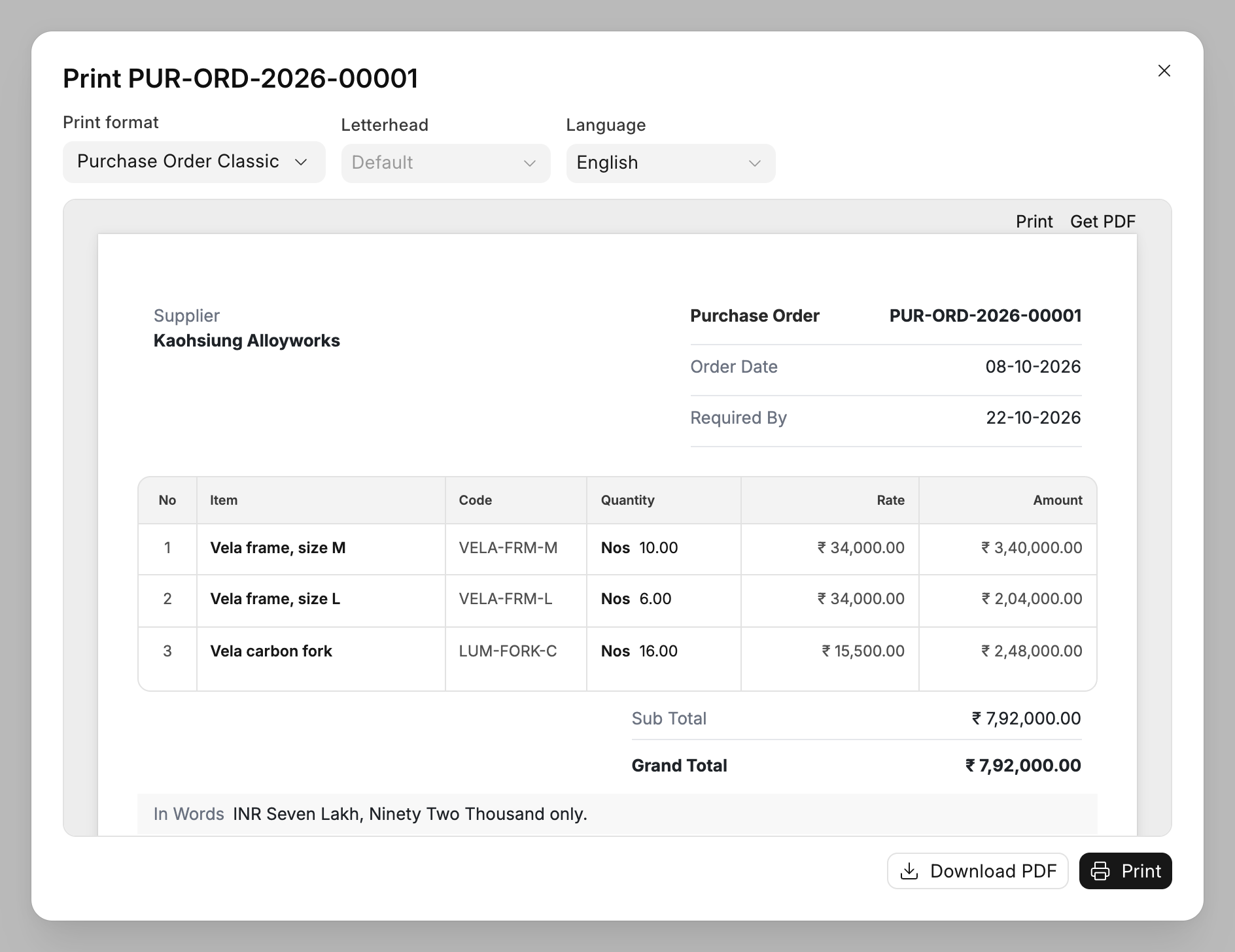

The print preview of a document

A pasted link to a document is sent as a plain link, without a card. To show the card, attach the document with the document button.

Attach a file from a message to a document

  1. Open the message's More actions menu.
  2. Click Attach to document.
  3. Pick the Document Type and the Document.
  4. Click Attach.

The file stays on the message too. You need permission to change the document.

Messages on the document's timeline

Every message with a document card also shows on the document's timeline in Desk. See Send a Raven from Desk.

On the mobile app

Tap + in the message box, then tap Document.

The + menu on the mobile app

The print preview has a Download PDF button and no Print button.
