Connect Looker Studio
Looker Studio is a free, online tool that helps users create and share interactive dashboards and reports from data. It was formerly known as Google Data Studio.
- You need to first generate a database user for your site. Follow this documentation to create a read-only user.
Typically, it takes a few seconds to configure the database user. Once it's complete, click on View Credential.

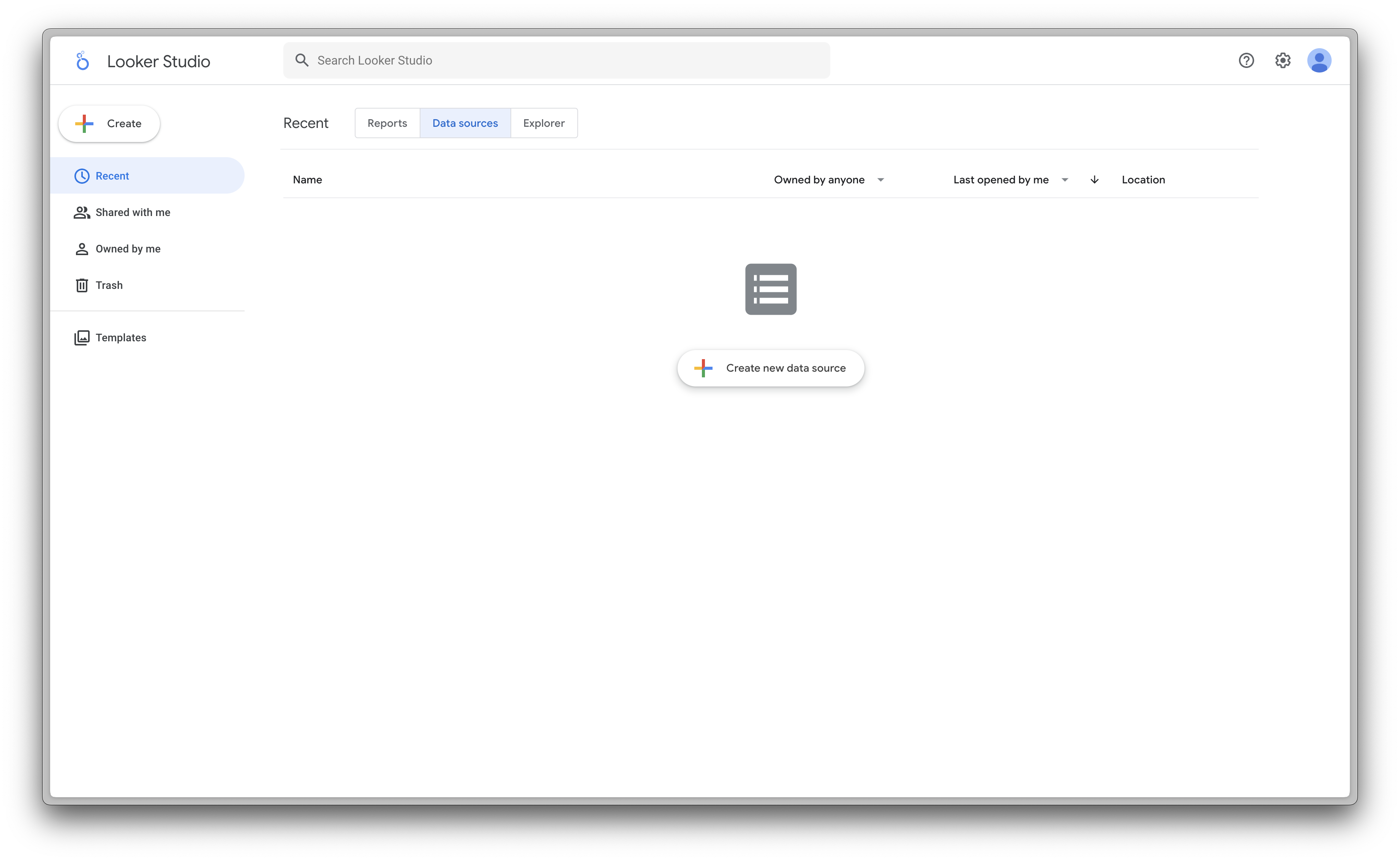

2. Go to Looker Studio and click on Create New Data Source !

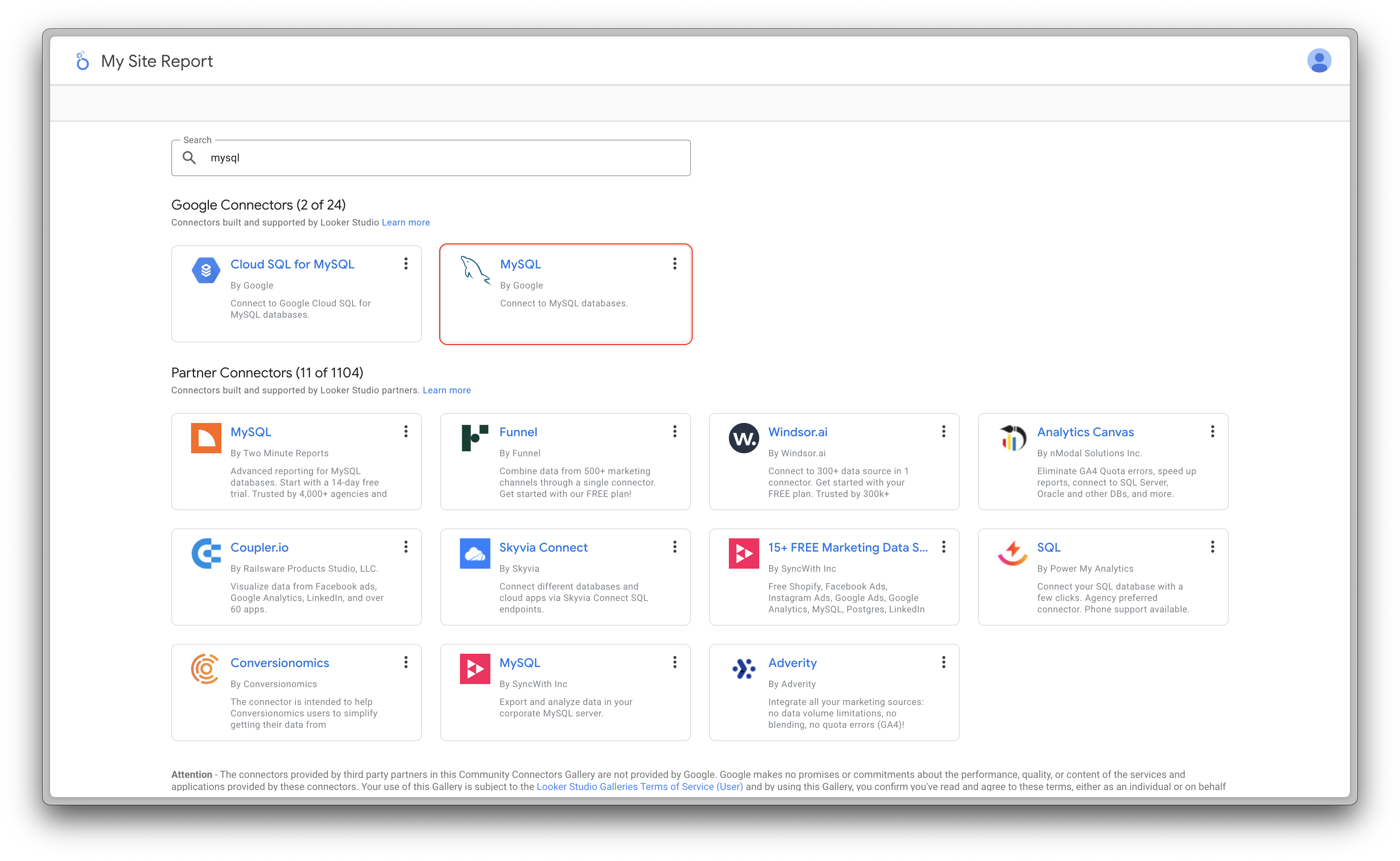

3. Search for mysql in connector list and choose the connector from Google.

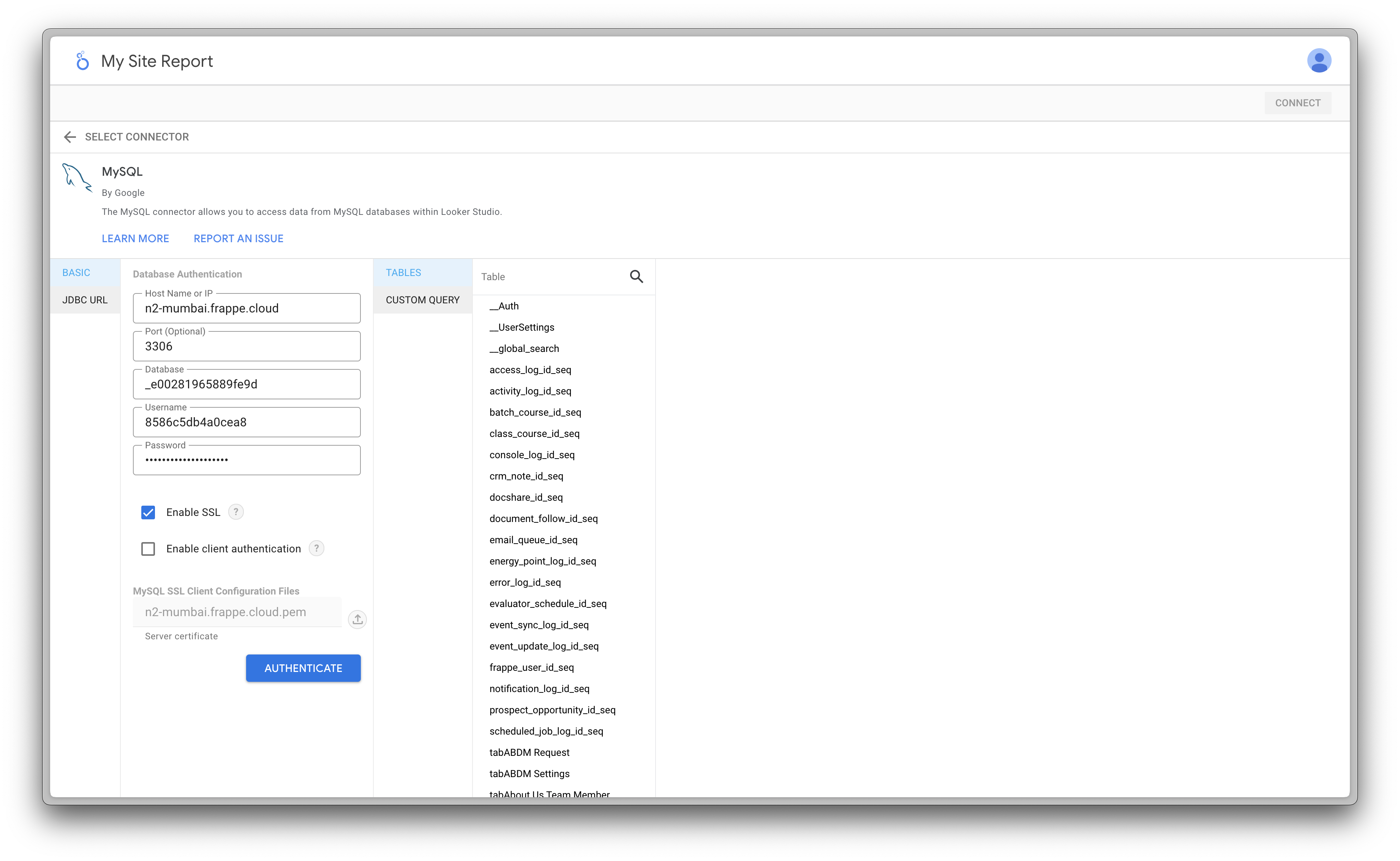

4. Fill up the database user's info and click on Authenticate.
Note : You need to check Enable SSL and must provide the SSL certificate. Check the representation image of Step 1 of this documentation to get the idea from where to download the certificate.
5. Choose the required table and click on Connect.

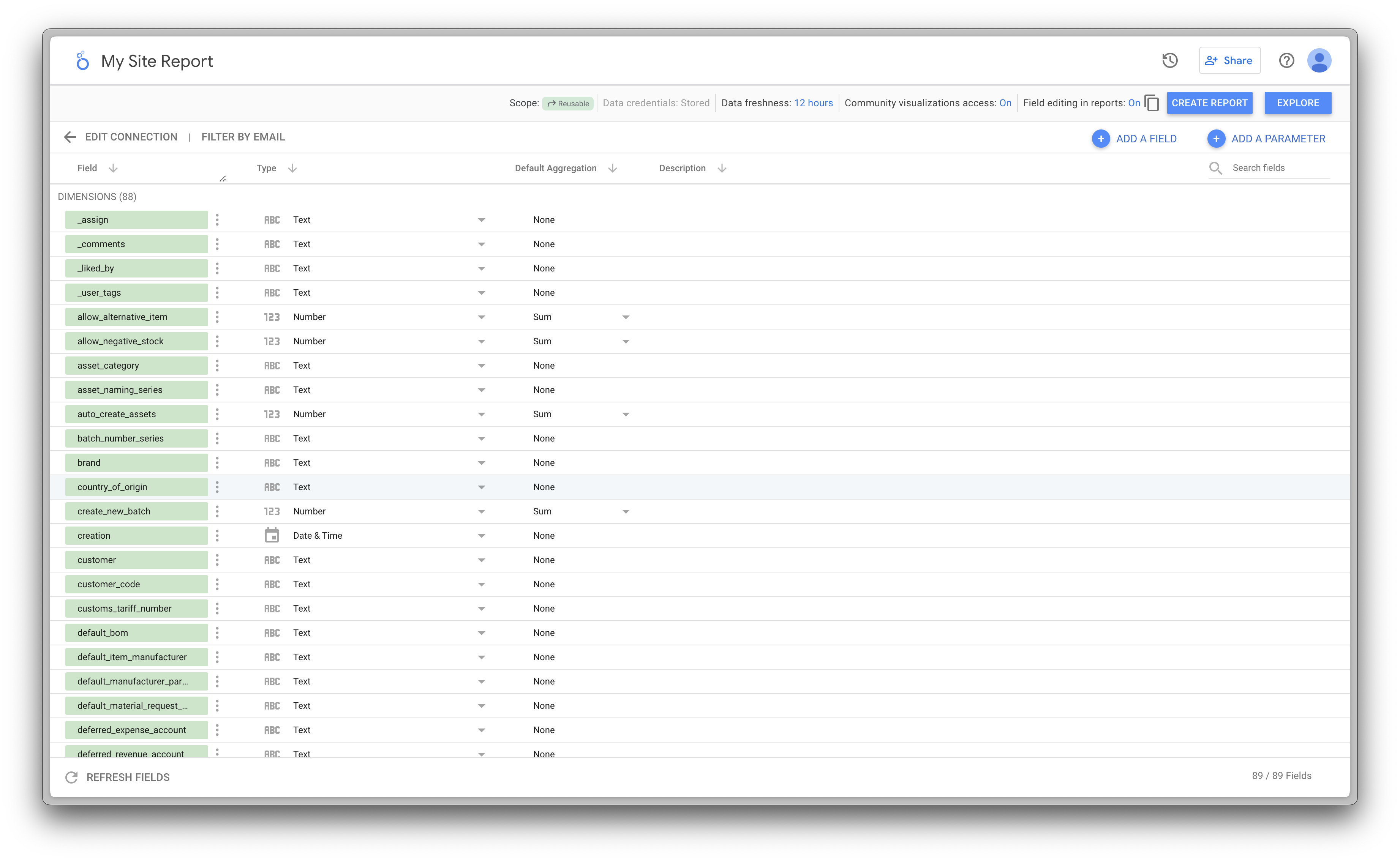

6. After that, you can see the details of the table and create required reports.
7. Check Looker Studio office documentation to get guidance on creating dashboards and reports.
