Architecture

Architecture Diagram

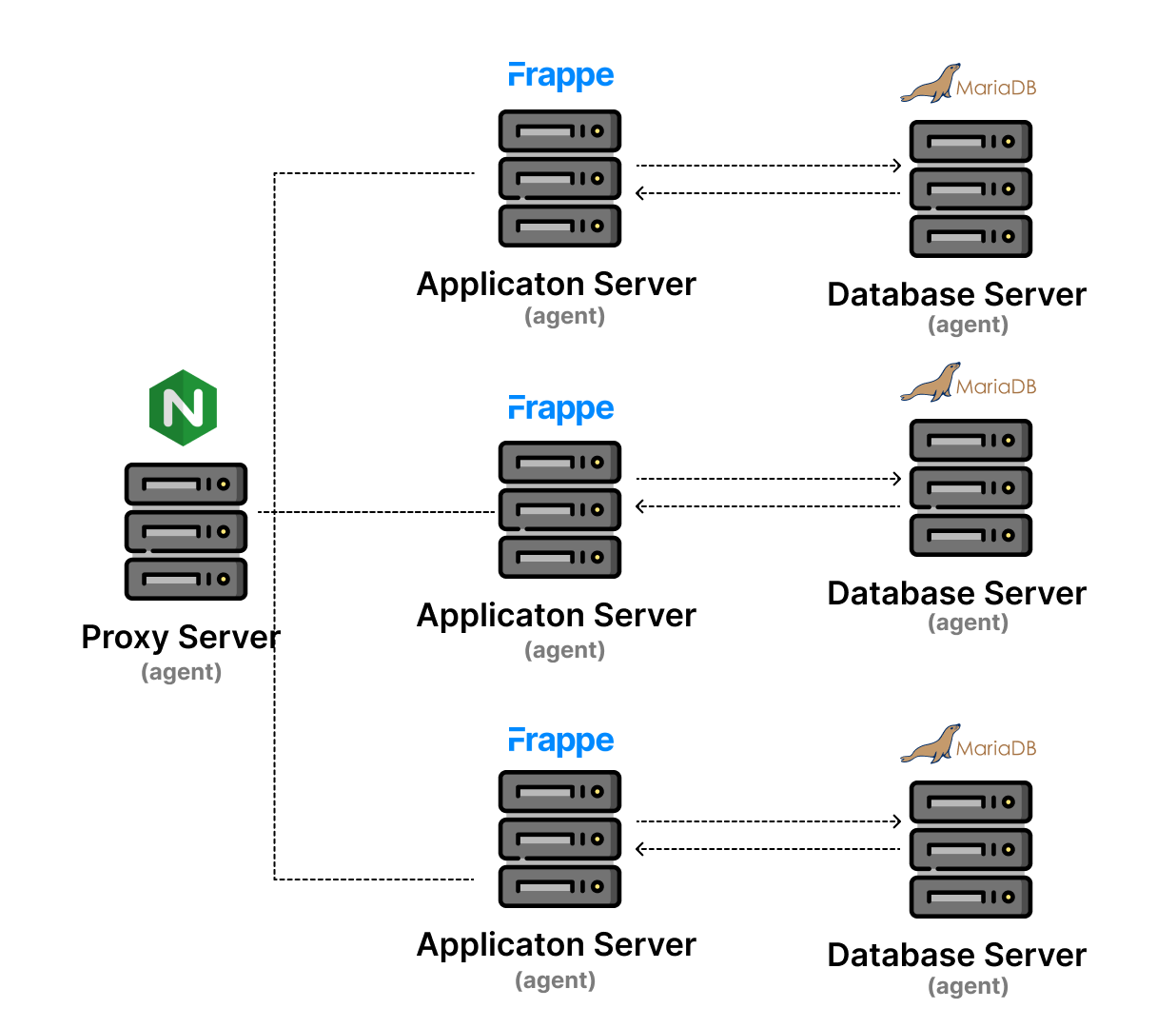

Typical Frappe Cloud (FC) cluster has a similar architecture:

FC Cluster

A more complex architecture would explain the redundancy for each server along with the network cluster.

What's under the hood?

  1. Frappe Framework: A full-stack web application framework written in Python and Javascript. The framework provides a robust foundation for building web applications, including a database abstraction layer, user authentication, and a REST API.
  2. Frappe UI: A Vue-based UI library to provide a modern user interface. The Frappe UI library provides a variety of components that can be used to build single-page applications on top of the Frappe Framework.
  3. Agent: A flask app designed to work along with Press. It provides a CLI interface for Press to communicate with the sites and benches.
  4. Docker: An open-source platform that enables developers to build, package, and deploy applications in lightweight, portable containers.
  5. Ansible: An open-source IT automation tool that simplifies the management, configuration, and deployment of systems and applications.
